Olide DSW120 Swing Door Opener Installation Video For Push Arm

For Pull Arm Installation

Wireless Push Button Open the Door

Olide DSW120 Smart Automatic Swing Door Opener, Phone APP Control Electric Door Closer

DSW120 is a low energy automatic ada swing door opener that is activated by normal/handicap buttons.This system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly, providing easy operation for handicapped or pedestrians.

Package Listing

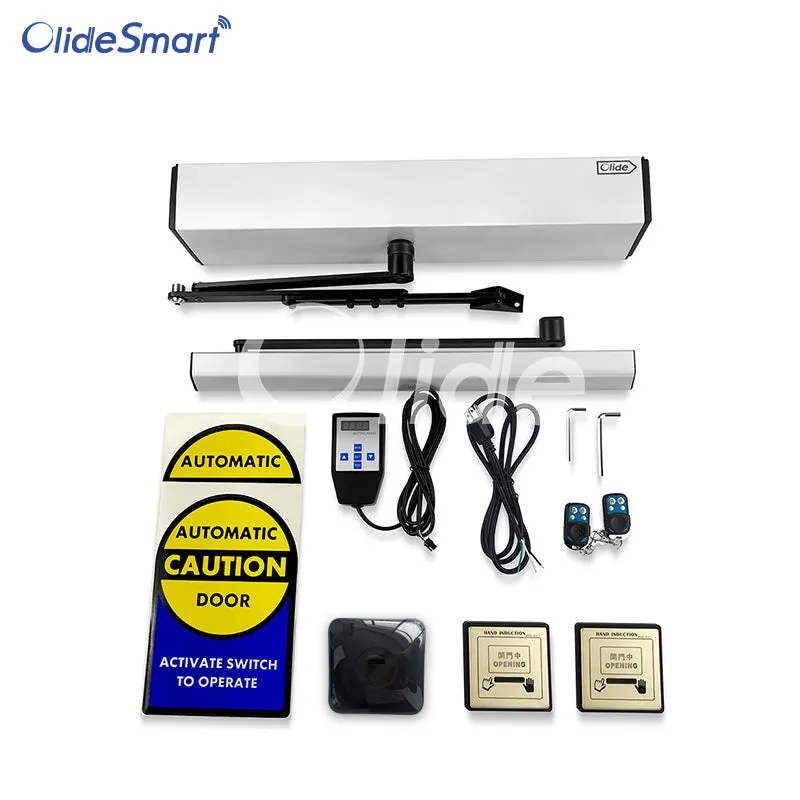

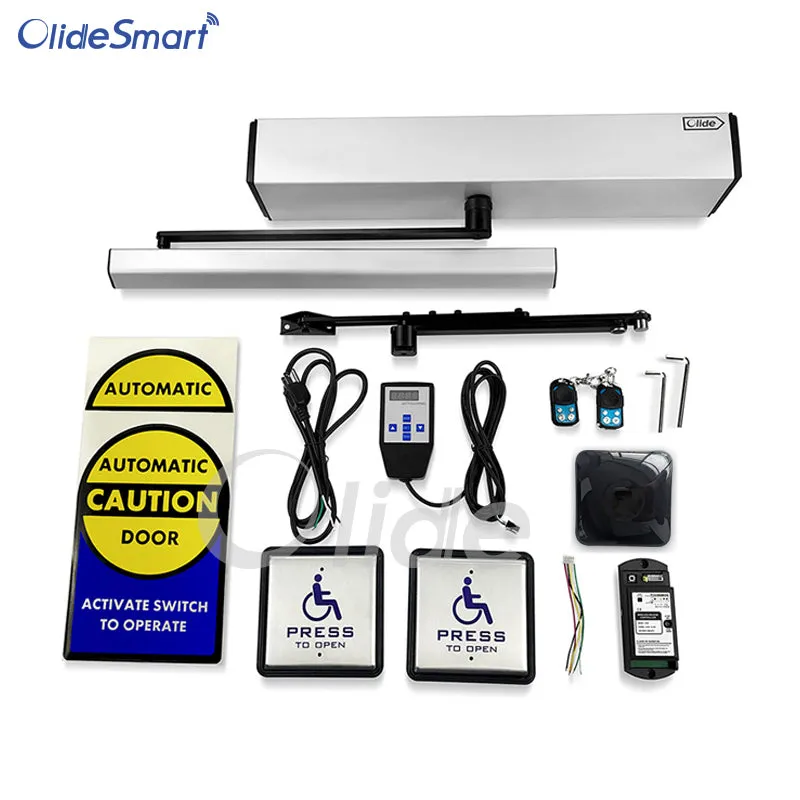

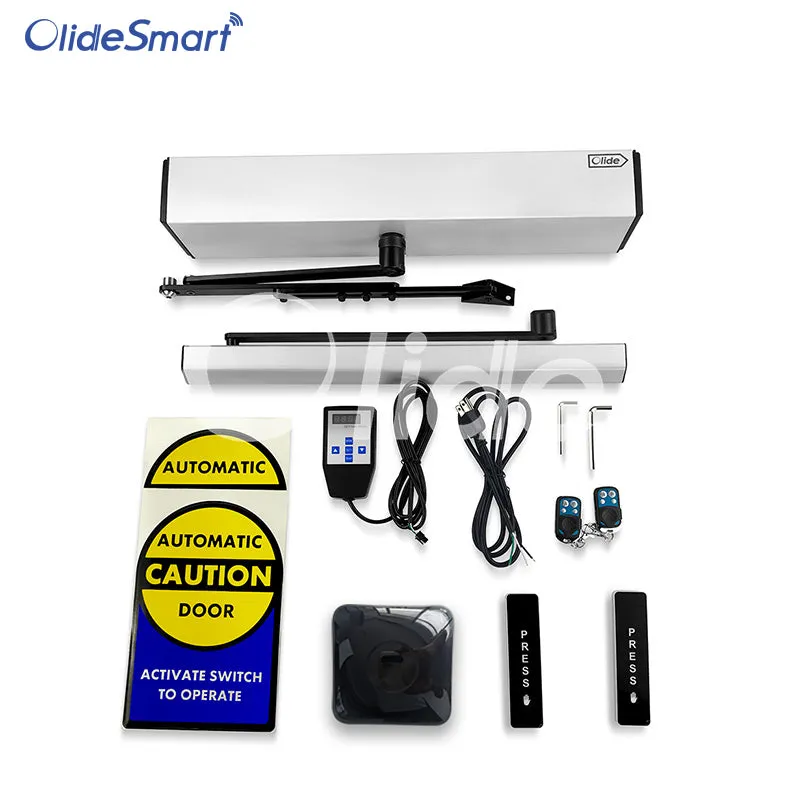

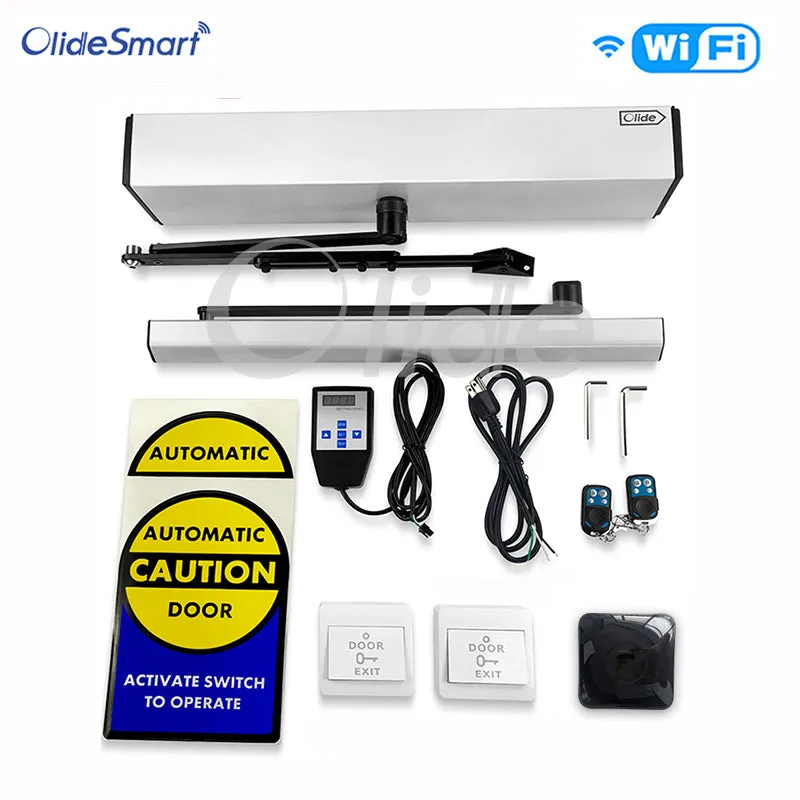

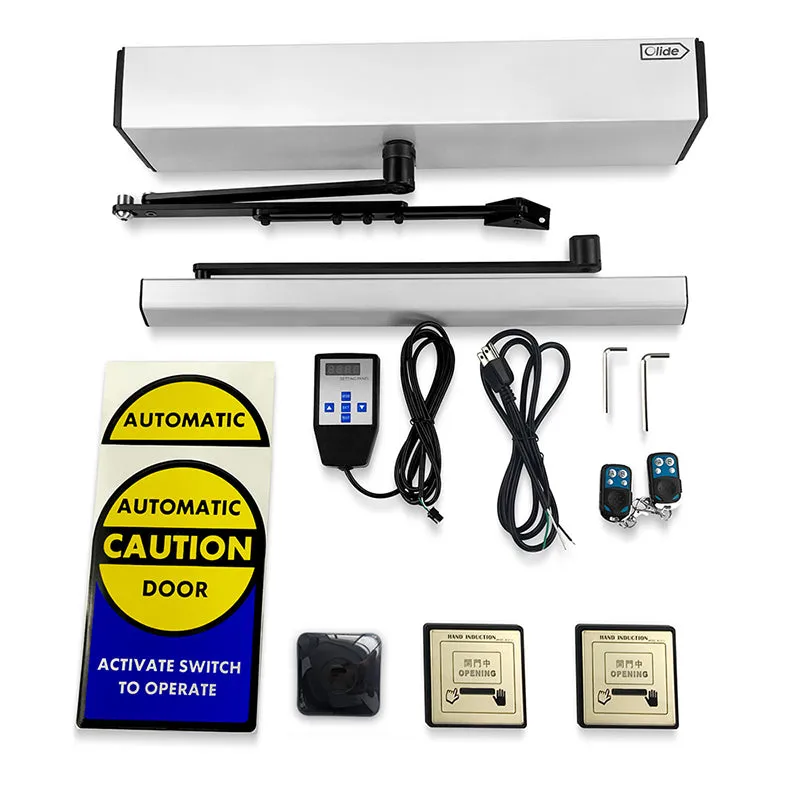

Kit 1:  Opener, 2 arms, 2pcs remotes, 1pc wifi remote, 1 pair wireless push button, 1pc hand programmer,1 plug

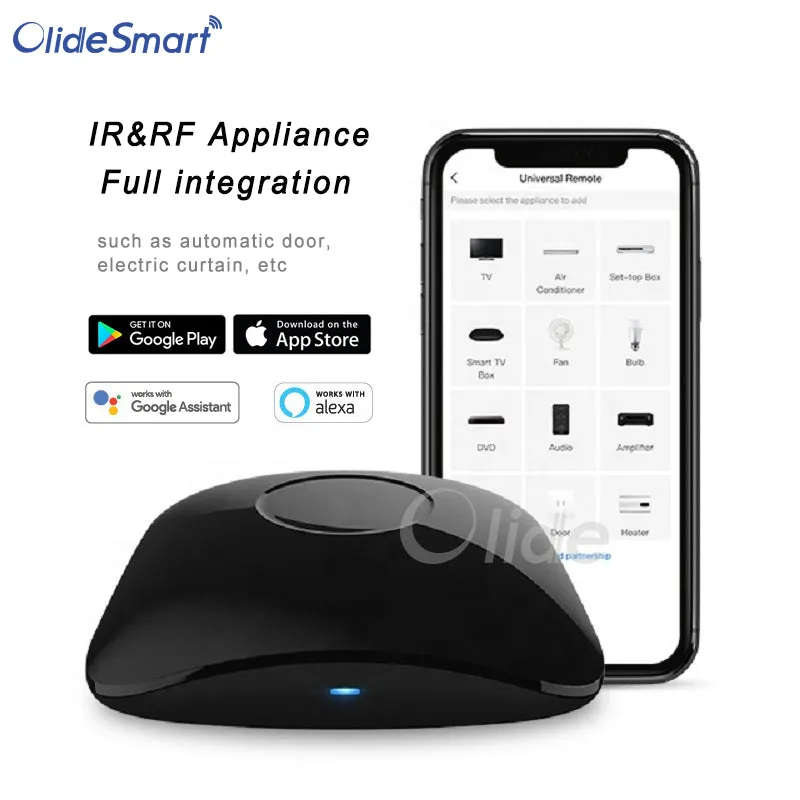

Features Of WIFI Universal Remote

• Universal IR control TV, STB, AC, DVD plater, AMP...;
• Support Wi-Fi \ 3G \ 4G control;
• Controlling 433MHz \315MHz RF devices like automatic door, curtain\shades motor,light switch...;
• Local IR code for faster response;
• Support external sensor accessory.

Automatic Swing Door Opener Mobile Phone Control Advantages

1. Reinforced high strength aluminum alloy and imported original parts used;

2. Imported motor from Germany with fast speed and service life of more than 1 million times, it can work stable and with smooth operation;

3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;

4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine;

5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor;

6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (lock, normally open, reset, automatic);

7. The swing door opener model SW120 can bear withstand the door weight of 120kgs(264.55lbs).

Smart Home System Door Entrance Hardware Details

Parameters easily adjustable by hand programmer
1.Opening or closing speeds
2.Manually open force (push go function)
3.Opening direction
4.Hold-on open

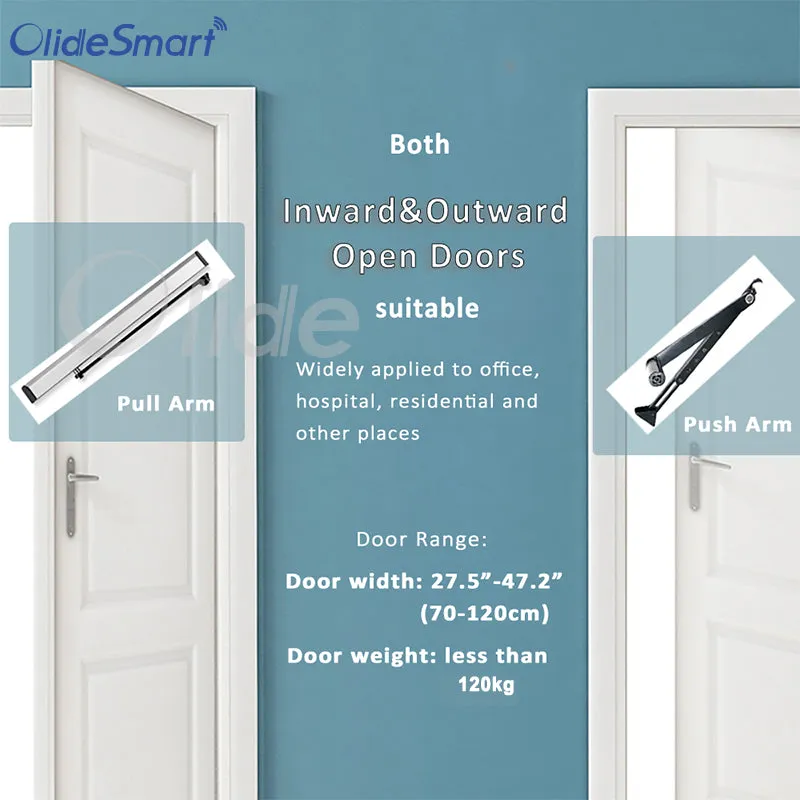

Door Opening Directions

DSW120 automatic swing door opener both equipped with push and pull arm, can open inward and outward; inswing open using push arm, and outswing open using pull arm.

Wiring Diagram With Accessory

Automatic Swing Door Opener Technical Specifications
